Hot filling semi-auto bottle blow molding machine PM2000HB

Place of Origin : Dalian China

Brand Name : Maccsy

Certification : ISO CE

Model Number : PM2000HB

Sort : PM2000HB

MOQ : 1

Price : Negotiable

Packaging Details : Safety Wooden Case

Delivery Time : 1-2 Weeks

Payment Terms : T/T L/C

Supply Ability : 20 sets / month

Contact Now

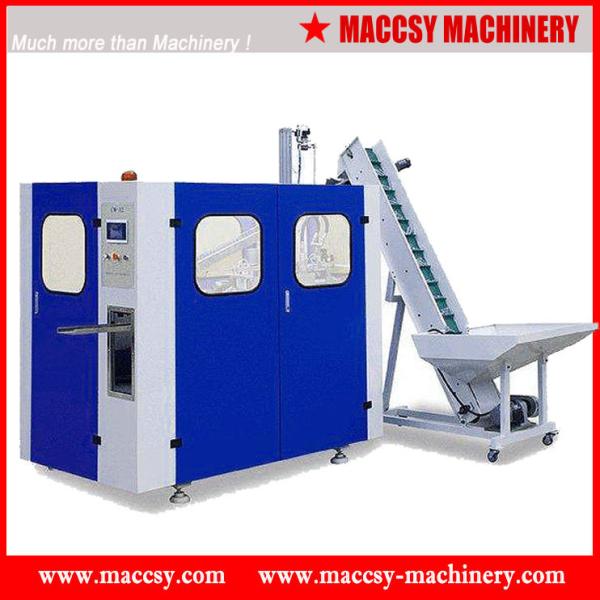

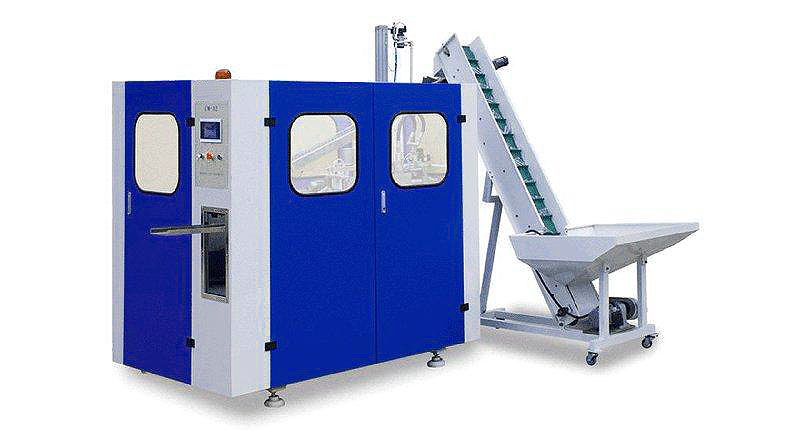

Photo of Hot filling semi-auto bottle blow molding machine PM2000HB

Hot filling semi-auto bottle blow molding machine PM2000HB

Technical parameters

General Information
PM2000HB
Clamping Force
20T
Clamping Stroke
230mm
Max. Stretching Stroke
380mm
Number of Cavities
2 Cavity
Theoretical Output
0.1-2.5L:500BPH;3-6L:280BPH

Max. Mould Thickness
300mm
Space Between Tie Bars
280*500mm
Electrical System
Voltage Standard
AC 380V/50HZ
Number of Heating Zone
2 Sections
Total Power(Full Loaded)
6kw
Container
Max. Container Volume
0.1-2.5L(2cav);3-6L(1 cav)
Neck Diameter Range
15-60mm
Max. Container Diameter
35-220mm
Max. Container Height
450mm
Auxiliary System
Low Air compressor
8-10Bar
High Air compressor
30Bar
Air Dryer
2.0/30
Dimension & Weight (L×W×H)
Blow molding machine
1480*600*2130mm
Preform Autoloader
1370*610*1340mm
Net Weight
0.82Ton
